Introduction

These are the results for the 2008 running of the Multiple Fundamental Frequency Estimation and Tracking task. For background information about this task set please refer to the 2013:Multiple Fundamental Frequency Estimation & Tracking page.

General Legend

Sub code Submission name Abstract Contributors
CDM1 CDM1 PDF Tian Cheng, Simon Dixon, Matthias Mauch
CDM2 CDM2 PDF Tian Cheng, Simon Dixon, Matthias Mauch
CDM3 CDM3 PDF Tian Cheng, Simon Dixon, Matthias Mauch
BW1 MSSIPLCA_fast_MultiF0 PDF Emmanouil Benetos, Tillman Weyde
BW2 MSSIPLCA_fast_NoteTracking1 PDF Emmanouil Benetos, Tillman Weyde
BW3 MSSIPLCA_fast_NoteTracking2 PDF Emmanouil Benetos, Tillman Weyde

Task 1: Multiple Fundamental Frequency Estimation (MF0E)

MF0E Overall Summary Results

Below are the average scores across 40 test files. These files come from 3 different sources: woodwind quintet recording of bassoon, clarinet, horn,flute and oboe (UIUC); Rendered MIDI using RWC database donated by IRCAM and a quartet recording of bassoon, clarinet, violin and sax donated by Dr. Bryan Pardo`s Interactive Audio Lab (IAL). 20 files coming from 5 sections of the woodwind recording where each section has 4 files ranging from 2 polyphony to 5 polyphony. 12 files from IAL, coming from 4 different songs ranging from 2 polyphony to 4 polyphony and 8 files from RWC synthesized midi ranging from 2 different songs ranging from 2 polphony to 5 polyphony.

BW1 CDM1 CDM2
Accuracy 0.662 0.620 0.620
Accuracy Chroma 0.694 0.660 0.660

download these results as csv

Detailed Results

Precision Recall Accuracy Etot Esubs Emiss Efa
BW1 0.771 0.735 0.662 0.392 0.112 0.153 0.128
CDM1 0.741 0.694 0.620 0.443 0.128 0.178 0.137
CDM2 0.741 0.694 0.620 0.443 0.128 0.178 0.137

download these results as csv

Detailed Chroma Results

Here, accuracy is assessed on chroma results (i.e. all F0's are mapped to a single octave before evaluating)

Precision Recall Accuracy Etot Esubs Emiss Efa
BW1 0.808 0.774 0.694 0.354 0.073 0.153 0.128
CDM1 0.789 0.742 0.660 0.395 0.080 0.178 0.137
CDM2 0.789 0.742 0.660 0.395 0.080 0.178 0.137

download these results as csv

Individual Results Files for Task 1

BW1= Emmanouil Benetos, Tillman Weyde
CDM1= Tian Cheng, Simon Dixon, Matthias Mauch
CDM2= Tian Cheng, Simon Dixon, Matthias Mauch


Info about the filenames

The filenames starting with part* comes from acoustic woodwind recording, the ones starting with RWC are synthesized. The legend about the instruments are:

bs = bassoon, cl = clarinet, fl = flute, hn = horn, ob = oboe, vl = violin, cel = cello, gtr = guitar, sax = saxophone, bass = electric bass guitar

Run Times

sub_ID Runtime(sec)
BW1 3374
CDM1 62027
CDM2 61992

download these results as csv

Friedman tests for Multiple Fundamental Frequency Estimation (MF0E)

The Friedman test was run in MATLAB to test significant differences amongst systems with regard to the performance (accuracy) on individual files.

Tukey-Kramer HSD Multi-Comparison

TeamID TeamID Lowerbound Mean Upperbound Significance
BW1 CDM2 0.8211 1.2750 1.7289 TRUE
BW1 CDM1 0.8211 1.2750 1.7289 TRUE
CDM2 CDM1 -0.4539 0.0000 0.4539 FALSE

download these results as csv

2013 Accuracy Per Song Friedman Mean Rankstask1.friedman.Friedman Mean Ranks.png

Task 2:Note Tracking (NT)

NT Mixed Set Overall Summary Results

This subtask is evaluated in two different ways. In the first setup , a returned note is assumed correct if its onset is within +-50ms of a ref note and its F0 is within +- quarter tone of the corresponding reference note, ignoring the returned offset values. In the second setup, on top of the above requirements, a correct returned note is required to have an offset value within 20% of the ref notes duration around the ref note`s offset, or within 50ms whichever is larger.

A total of 34 files were used in this subtask: 16 from woodwind recording, 8 from IAL quintet recording and 6 piano.

BW2 BW3 CDM3
Ave. F-Measure Onset-Offset 0.3264 0.2745 0.2880
Ave. F-Measure Onset Only 0.5533 0.4754 0.5071
Ave. F-Measure Chroma 0.3383 0.3142 0.3058
Ave. F-Measure Onset Only Chroma 0.5751 0.5512 0.5439

download these results as csv

Detailed Results

Precision Recall Ave. F-measure Ave. Overlap
BW2 0.335 0.334 0.326 0.879
BW3 0.237 0.342 0.274 0.879
CDM3 0.268 0.328 0.288 0.857

download these results as csv

Detailed Chroma Results

Here, accuracy is assessed on chroma results (i.e. all F0's are mapped to a single octave before evaluating)

Precision Recall Ave. F-measure Ave. Overlap
BW2 0.347 0.347 0.338 0.875
BW3 0.270 0.395 0.314 0.877
CDM3 0.283 0.350 0.306 0.854

download these results as csv


Results Based on Onset Only

Precision Recall Ave. F-measure Ave. Overlap
BW2 0.592 0.546 0.553 0.726
BW3 0.419 0.576 0.475 0.720
CDM3 0.479 0.562 0.507 0.702

download these results as csv

Chroma Results Based on Onset Only

Precision Recall Ave. F-measure Ave. Overlap
BW2 0.615 0.570 0.575 0.712
BW3 0.483 0.675 0.551 0.684
CDM3 0.513 0.606 0.544 0.682

download these results as csv

Run Times

sub_ID Runtime(sec)
BW2 3706
BW3 2203
CDM3 68470

download these results as csv

Friedman Tests for Note Tracking

The Friedman test was run in MATLAB to test significant differences amongst systems with regard to the F-measure on individual files.

Tukey-Kramer HSD Multi-Comparison for Task2
TeamID TeamID Lowerbound Mean Upperbound Significance
BW2 CDM3 0.0786 0.6471 1.2155 TRUE
BW2 BW3 0.2845 0.8529 1.4214 TRUE
CDM3 BW3 -0.3625 0.2059 0.7743 FALSE

download these results as csv

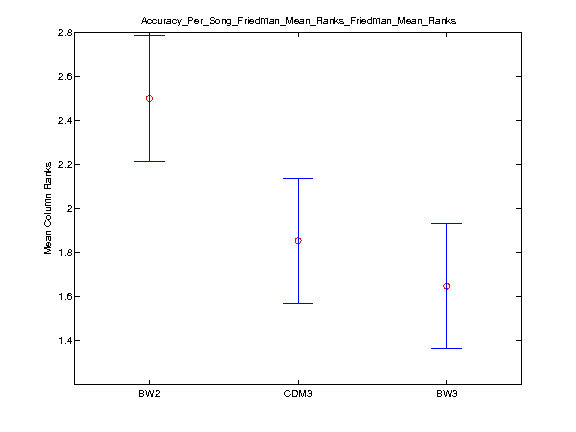

2013 Accuracy Per Song Friedman Mean Rankstask2.onsetOnly.friedman.Friedman Mean Ranks.png

NT Piano-Only Overall Summary Results

This subtask is evaluated in two different ways. In the first setup , a returned note is assumed correct if its onset is within +-50ms of a ref note and its F0 is within +- quarter tone of the corresponding reference note, ignoring the returned offset values. In the second setup, on top of the above requirements, a correct returned note is required to have an offset value within 20% of the ref notes duration around the ref note`s offset, or within 50ms whichever is larger. 6 piano recordings are evaluated separately for this subtask.

BW2 BW3 CDM3
Ave. F-Measure Onset-Offset 0.1596 0.1940 0.1551
Ave. F-Measure Onset Only 0.5359 0.6110 0.5723
Ave. F-Measure Chroma 0.1653 0.2055 0.1692
Ave. F-Measure Onset Only Chroma 0.5455 0.6274 0.5904

download these results as csv

Detailed Results

Precision Recall Ave. F-measure Ave. Overlap
BW2 0.186 0.141 0.160 0.831
BW3 0.193 0.195 0.194 0.831
CDM3 0.158 0.153 0.155 0.788

download these results as csv

Detailed Chroma Results

Here, accuracy is assessed on chroma results (i.e. all F0's are mapped to a single octave before evaluating)

Precision Recall Ave. F-measure Ave. Overlap
BW2 0.192 0.146 0.165 0.824
BW3 0.205 0.207 0.205 0.819
CDM3 0.172 0.167 0.169 0.780

download these results as csv

Results Based on Onset Only

Precision Recall Ave. F-measure Ave. Overlap
BW2 0.610 0.483 0.536 0.559
BW3 0.608 0.616 0.611 0.562
CDM3 0.575 0.574 0.572 0.538

download these results as csv

Chroma Results Based on Onset Only

Precision Recall Ave. F-measure Ave. Overlap
BW2 0.622 0.491 0.546 0.555
BW3 0.624 0.633 0.627 0.557
CDM3 0.593 0.592 0.590 0.538

download these results as csv

Individual Results Files for Task 2

BW2= Emmanouil Benetos, Tillman Weyde
BW3= Emmanouil Benetos, Tillman Weyde
CDM3= Tian Cheng, Simon Dixon, Matthias Mauch
