2014:Audio Music Similarity and Retrieval Results

From MIREX Wiki

Jump to: navigation, search

Contents

Introduction

These are the results for the 2014 running of the Audio Music Similarity and Retrieval task set. For background information about this task set please refer to the Audio Music Similarity and Retrieval page.

Each system was given 7000 songs chosen from IMIRSEL's "uspop", "uscrap" and "american" "classical" and "sundry" collections. Each system then returned a 7000x7000 distance matrix. 50 songs were randomly selected from the 10 genre groups (5 per genre) as queries and the first 5 most highly ranked songs out of the 7000 were extracted for each query (after filtering out the query itself, returned results from the same artist were also omitted). Then, for each query, the returned results (candidates) from all participants were grouped and were evaluated by human graders using the Evalutron 6000 grading system. Each individual query/candidate set was evaluated by a single grader. For each query/candidate pair, graders provided two scores. Graders were asked to provide 1 categorical BROAD score with 3 categories: NS,SS,VS as explained below, and one FINE score (in the range from 0 to 100). A description and analysis is provided below.

The systems read in 30 second audio clips as their raw data. The same 30 second clips were used in the grading stage.


General Legend

Team ID

Sub code Submission name Abstract Contributors
FFMD1 FFMD PDF Peter Foster, György Fazekas, Matthias Mauch, Simon Dixon
GK1 ILSP AMS PDF Aggelos Gkiokas, Vassilis Katsouros, George Carayannis
GKC2 ILSP AMS 2 PDF Aggelos Gkiokas, Vassilis Katsouros, George Carayannis
GKC3 ILSP AMS 3 PDF Aggelos Gkiokas, Vassilis Katsouros, George Carayannis
PS1 PS09 PDF Dominik Schnitzer, Tim Pohle
SS2 cbmr_sim_2013_resubmission PDF Klaus Seyerlehner, Markus Schedl
SS4 cbmr_sim_2014_submission PDF Klaus Seyerlehner, Markus Schedl
SS5 AM-ES PDF Abhinava Srivastava, Mohit Sinha

Broad Categories

NS = Not Similar
SS = Somewhat Similar
VS = Very Similar

Understanding Summary Measures

Fine = Has a range from 0 (failure) to 100 (perfection).
Broad = Has a range from 0 (failure) to 2 (perfection) as each query/candidate pair is scored with either NS=0, SS=1 or VS=2.

Human Evaluation

Overall Summary Results

Measure FFMD1 GK1 GKC2 GKC3 PS1 SS2 SS4 SS5
Average Fine Score 38.164 35.290 35.334 34.556 48.880 49.352 49.008 45.082
Average Cat Score 0.732 0.634 0.632 0.614 1.014 1.014 1.020 0.920

download these results as csv

Friedman's Tests

Friedman's Test (FINE Scores)

The Friedman test was run in MATLAB against the Fine summary data over the 50 queries.
Command: [c,m,h,gnames] = multcompare(stats, 'ctype', 'tukey-kramer','estimate', 'friedman', 'alpha', 0.05);

TeamID TeamID Lowerbound Mean Upperbound Significance
SS2 SS4 -1.543 -0.060 1.423 FALSE
SS2 PS1 -1.553 -0.070 1.413 FALSE
SS2 SS5 -0.853 0.630 2.113 FALSE
SS2 FFMD1 0.927 2.410 3.893 TRUE
SS2 GKC2 1.557 3.040 4.523 TRUE
SS2 GK1 1.137 2.620 4.103 TRUE
SS2 GKC3 1.627 3.110 4.593 TRUE
SS4 PS1 -1.493 -0.010 1.473 FALSE
SS4 SS5 -0.793 0.690 2.173 FALSE
SS4 FFMD1 0.987 2.470 3.953 TRUE
SS4 GKC2 1.617 3.100 4.583 TRUE
SS4 GK1 1.197 2.680 4.163 TRUE
SS4 GKC3 1.687 3.170 4.653 TRUE
PS1 SS5 -0.783 0.700 2.183 FALSE
PS1 FFMD1 0.997 2.480 3.963 TRUE
PS1 GKC2 1.627 3.110 4.593 TRUE
PS1 GK1 1.207 2.690 4.173 TRUE
PS1 GKC3 1.697 3.180 4.663 TRUE
SS5 FFMD1 0.297 1.780 3.263 TRUE
SS5 GKC2 0.927 2.410 3.893 TRUE
SS5 GK1 0.507 1.990 3.473 TRUE
SS5 GKC3 0.997 2.480 3.963 TRUE
FFMD1 GKC2 -0.853 0.630 2.113 FALSE
FFMD1 GK1 -1.273 0.210 1.693 FALSE
FFMD1 GKC3 -0.783 0.700 2.183 FALSE
GKC2 GK1 -1.903 -0.420 1.063 FALSE
GKC2 GKC3 -1.413 0.070 1.553 FALSE
GK1 GKC3 -0.993 0.490 1.973 FALSE

download these results as csv

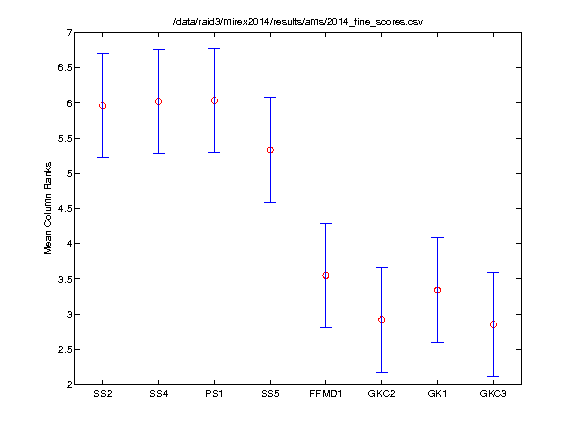

2014 evalutron.fine.friedman.tukeyKramerHSD.png

Friedman's Test (BROAD Scores)

The Friedman test was run in MATLAB against the BROAD summary data over the 50 queries.
Command: [c,m,h,gnames] = multcompare(stats, 'ctype', 'tukey-kramer','estimate', 'friedman', 'alpha', 0.05);

TeamID TeamID Lowerbound Mean Upperbound Significance
SS4 PS1 -1.492 -0.060 1.372 FALSE
SS4 SS2 -1.342 0.090 1.522 FALSE
SS4 SS5 -1.182 0.250 1.682 FALSE
SS4 FFMD1 0.518 1.950 3.382 TRUE
SS4 GK1 1.128 2.560 3.992 TRUE
SS4 GKC2 1.328 2.760 4.192 TRUE
SS4 GKC3 1.418 2.850 4.282 TRUE
PS1 SS2 -1.282 0.150 1.582 FALSE
PS1 SS5 -1.122 0.310 1.742 FALSE
PS1 FFMD1 0.578 2.010 3.442 TRUE
PS1 GK1 1.188 2.620 4.052 TRUE
PS1 GKC2 1.388 2.820 4.252 TRUE
PS1 GKC3 1.478 2.910 4.342 TRUE
SS2 SS5 -1.272 0.160 1.592 FALSE
SS2 FFMD1 0.428 1.860 3.292 TRUE
SS2 GK1 1.038 2.470 3.902 TRUE
SS2 GKC2 1.238 2.670 4.102 TRUE
SS2 GKC3 1.328 2.760 4.192 TRUE
SS5 FFMD1 0.268 1.700 3.132 TRUE
SS5 GK1 0.878 2.310 3.742 TRUE
SS5 GKC2 1.078 2.510 3.942 TRUE
SS5 GKC3 1.168 2.600 4.032 TRUE
FFMD1 GK1 -0.822 0.610 2.042 FALSE
FFMD1 GKC2 -0.622 0.810 2.242 FALSE
FFMD1 GKC3 -0.532 0.900 2.332 FALSE
GK1 GKC2 -1.232 0.200 1.632 FALSE
GK1 GKC3 -1.142 0.290 1.722 FALSE
GKC2 GKC3 -1.342 0.090 1.522 FALSE

download these results as csv

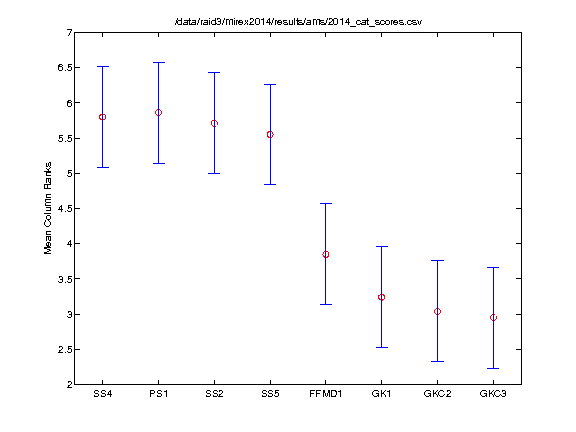

2014 evalutron.cat.friedman.tukeyKramerHSD.png

Summary Results by Query

FINE Scores

These are the mean FINE scores per query assigned by Evalutron graders. The FINE scores for the 5 candidates returned per algorithm, per query, have been averaged. Values are bounded between 0 and 100. A perfect score would be 100. Genre labels have been included for reference.

Genre Query FFMD1 GK1 GKC2 GKC3 PS1 SS2 SS4 SS5
BAROQUE d001397 56.7 25.7 18.1 5.8 62.5 70.2 67.3 65.9
BAROQUE d001459 37.7 2 23.4 32.2 85.7 89.2 93.3 88.7
BAROQUE d002624 67.4 54.7 49.4 40.6 85.9 84.6 83.8 83.8
BAROQUE d015486 66.2 73.1 66.4 65.1 82.3 81.2 81.5 82.5
BAROQUE d019963 73.9 69.3 68.9 66.1 85.4 81.1 83.1 84.4
BLUES e002382 48.7 44.7 41.7 40.5 41.0 49.0 47.4 44.0
BLUES e004484 59.4 59.6 52.7 53.7 68.9 59.4 69.0 59.4
BLUES e006191 63.1 45.0 44.6 40.1 62.8 65.9 68.3 62.9
BLUES e008309 31.5 36.8 39.6 39.6 56.1 43.1 40.0 51.7
BLUES e017534 42.5 45.5 45.6 45.1 55.2 52.4 52.7 43.9
CLASSICAL d002003 15.5 10.7 1 1 20.7 7.9 2.6 13.0
CLASSICAL d007289 91.2 44.3 67.6 52.8 95.8 95.5 96.2 95.9
CLASSICAL d011638 2.7 5.6 3.1 3.1 37.5 26.9 19.0 29.8
CLASSICAL d012026 1.6 11.2 12.8 13.5 21.9 22.3 25.2 20.1
CLASSICAL d016699 25.2 23.3 26.2 26.0 28.8 31.0 26.7 31.5
COUNTRY e001114 47.5 36.0 46.5 53.0 58.0 45.0 47.5 67.0
COUNTRY e008446 45.5 57.6 60.5 58.6 51.4 54.0 64.1 49.8
COUNTRY e009159 11.1 36.7 31.4 26.3 51.0 33.0 32.4 39.8
COUNTRY e016660 28.1 18.3 19.9 13.2 22.9 29.4 20.6 20.9
COUNTRY e018065 22.0 25.4 27.4 31.9 45.0 36.2 42.2 44.1
EDANCE a005631 35.9 22.6 30.1 26.6 54.1 44.8 39.5 41.2
EDANCE a005956 19.3 14.3 12.9 12.7 33.6 42.2 45.9 25.1
EDANCE b001277 15.0 34.9 28.8 37.2 29.5 50.0 43.8 14.5
EDANCE f001351 51.8 56.5 55.0 53.0 35.9 56.0 60.1 27.4
EDANCE f013763 53.2 25.1 30.0 26.1 32.6 45.4 47.6 35.7
JAZZ e004761 39.7 29.8 44.3 35.8 24.6 51.4 51.6 32.0
JAZZ e008457 31.1 23.3 30.7 35.0 51.6 61.1 53.3 40.7
JAZZ e017361 51.4 31.8 39.7 44.0 53.2 52.0 52.9 31.1
JAZZ e018523 5.8 21.4 21.8 21.8 18.4 37.2 37.6 32.5
JAZZ e018792 38.4 49.1 37.4 43.5 44.2 40.6 39.2 39.4
METAL a005951 24.7 44.0 46.7 46.6 54.0 30.5 31.4 37.3
METAL b001596 28.9 56.5 43.0 52.7 70.3 72.8 71.6 37.5
METAL b018086 16.6 27.8 25.4 26.3 32.0 24.0 21.6 28.0
METAL b018190 14.1 16.9 19.7 18.8 26.3 27.3 25.7 25.6
METAL b019401 9 7 6.6 10.5 5.9 11.6 10.1 15.8
RAPHIPHOP a000917 76.6 63.2 61.3 61.2 81.1 79.6 79.0 64.9
RAPHIPHOP a002493 72.5 74.5 58.5 70.5 74.5 77.0 77.5 78.0
RAPHIPHOP a004652 57.9 53.0 51.9 54.6 52.0 68.3 51.4 56.2
RAPHIPHOP a008454 4.9 9.7 14.7 12.2 21.3 9.6 10.7 21.2
RAPHIPHOP b019567 1.9 2.3 0.8 1 2.1 8 5 5.8
ROCKROLL b006054 32.9 25.5 21.9 24.1 35.2 30.2 32.1 26.5
ROCKROLL b011339 47.1 42.2 40.6 41.9 48.9 57.8 55.0 44.1
ROCKROLL b012144 45.8 38.6 41.1 42.6 49.2 40.9 47.5 45.1
ROCKROLL b016472 41.3 17.3 16.8 10.6 66.4 47.3 52.7 47.9
ROCKROLL b017328 47.0 35.0 34.0 33.0 54.5 57.5 52.0 56.0
ROMANTIC d001837 29.8 44.8 43.9 42.9 55.6 61.8 69.3 49.6
ROMANTIC d004789 24.4 6.5 7.3 6.3 23.8 22.0 24.3 25.9
ROMANTIC d009318 30.5 48.5 41.0 16.0 67.5 66.0 69.5 66.5
ROMANTIC d014202 53.8 47.9 48.3 47.9 56.7 70.4 62.9 54.7
ROMANTIC d015836 69.4 69.0 65.7 64.2 70.2 67.0 66.7 68.8

download these results as csv

BROAD Scores

These are the mean BROAD scores per query assigned by Evalutron graders. The BROAD scores for the 5 candidates returned per algorithm, per query, have been averaged. Values are bounded between 0 (not similar) and 2 (very similar). A perfect score would be 2. Genre labels have been included for reference.

Genre Query FFMD1 GK1 GKC2 GKC3 PS1 SS2 SS4 SS5
BAROQUE d001397 1 0.4 0.3 0 1.2 1.2 1.2 1.3
BAROQUE d001459 0.7 0 0.4 0.6 1.8 2 2 1.9
BAROQUE d002624 1.3 0.7 0.6 0.3 1.8 1.8 1.7 1.7
BAROQUE d015486 1.3 1.6 1.4 1.3 2 2 2 2
BAROQUE d019963 2 1.7 1.7 1.6 2 2 2 2
BLUES e002382 0.9 0.9 0.9 0.7 0.7 0.9 0.9 1
BLUES e004484 1.4 1.1 1.1 1.1 1.8 1.4 1.7 1.4
BLUES e006191 1.4 0.8 0.8 0.6 1.3 1.5 1.6 1.3
BLUES e008309 0.6 0.7 0.8 0.8 1.4 1 0.8 1.1
BLUES e017534 0.8 0.9 0.9 0.9 1.1 1 1.1 0.8
CLASSICAL d002003 0.3 0.2 0 0 0.4 0.1 0 0.3
CLASSICAL d007289 2 0.8 1.4 1 2 2 2 2
CLASSICAL d011638 0.1 0.1 0.1 0.1 1 0.8 0.8 0.8
CLASSICAL d012026 0 0.4 0.3 0.4 0.8 0.7 0.8 0.8
CLASSICAL d016699 0.4 0.3 0.4 0.4 0.3 0.3 0.2 0.5
COUNTRY e001114 0.6 0.6 0.6 0.8 1.1 0.5 0.7 1.5
COUNTRY e008446 0.9 1.2 1.3 1.3 1 1.1 1.5 1.1
COUNTRY e009159 0 0.7 0.6 0.5 1.4 0.6 0.6 0.9
COUNTRY e016660 0.6 0.1 0.2 0.1 0.2 0.6 0.2 0.3
COUNTRY e018065 0.4 0.3 0.3 0.5 0.7 0.7 0.6 0.7
EDANCE a005631 0.6 0.2 0.5 0.4 1 0.8 0.7 0.8
EDANCE a005956 0.1 0.1 0 0 0.5 0.8 0.9 0.3
EDANCE b001277 0.1 0.6 0.5 0.6 0.3 1 1 0.2
EDANCE f001351 1 1.1 1.1 1.1 0.5 1 1.1 0.3
EDANCE f013763 1.1 0.5 0.6 0.6 0.5 0.9 0.9 0.7
JAZZ e004761 0.8 0.5 0.8 0.6 0.3 1.2 1.2 0.4
JAZZ e008457 0.8 0.5 0.8 1 1.5 1.4 1.4 1
JAZZ e017361 0.7 0.4 0.5 0.6 1 0.9 0.8 0.2
JAZZ e018523 0.2 0.7 0.6 0.6 0.5 1 1.1 0.9
JAZZ e018792 0.6 0.5 0.5 0.4 0.8 0.6 0.8 0.7
METAL a005951 0.3 0.7 0.9 0.8 1.3 0.3 0.4 0.6
METAL b001596 0.4 1.3 0.8 1.1 1.7 1.7 1.6 0.6
METAL b018086 0 0.5 0.4 0.4 0.5 0.3 0.2 0.4
METAL b018190 0.1 0.3 0.3 0.3 0.4 0.4 0.4 0.4
METAL b019401 0.1 0.1 0 0.1 0.1 0.2 0.2 0.3
RAPHIPHOP a000917 1.8 1.4 1.3 1.3 2 2 2 1.6
RAPHIPHOP a002493 1.5 1.5 1 1.5 1.7 1.6 1.5 1.7
RAPHIPHOP a004652 1.3 1 1 1 1.1 1.5 1.1 1.2
RAPHIPHOP a008454 0.1 0.3 0.4 0.3 0.5 0.1 0.2 0.5
RAPHIPHOP b019567 0.1 0 0 0 0 0.2 0.1 0.2
ROCKROLL b006054 0.6 0.4 0.3 0.4 0.7 0.4 0.4 0.6
ROCKROLL b011339 0.9 0.8 0.7 0.7 0.7 1.3 1.3 0.8
ROCKROLL b012144 0.6 0.2 0.3 0.3 0.7 0.3 0.6 0.5
ROCKROLL b016472 0.9 0.2 0.2 0.1 1.4 1.1 1.3 1
ROCKROLL b017328 0.7 0.4 0.3 0.3 1 1.2 0.8 1.1
ROMANTIC d001837 0.4 0.8 0.7 0.7 1.2 1.4 1.7 0.9
ROMANTIC d004789 0.8 0.2 0.2 0.2 1 0.8 0.8 1
ROMANTIC d009318 0.4 0.6 0.5 0 0.9 1 1.1 1.1
ROMANTIC d014202 1.2 0.9 0.9 0.9 1.2 1.6 1.4 1
ROMANTIC d015836 1.7 1.5 1.4 1.4 1.7 1.5 1.6 1.6

download these results as csv

Raw Scores

The raw data derived from the Evalutron 6000 human evaluations are located on the 2014:Audio Music Similarity and Retrieval Raw Data page.

Metadata and Distance Space Evaluation

The following reports provide evaluation statistics based on analysis of the distance space and metadata matches and include:

  • Neighbourhood clustering by artist, album and genre
  • Artist-filtered genre clustering
  • How often the triangular inequality holds
  • Statistics on 'hubs' (tracks similar to many tracks) and orphans (tracks that are not similar to any other tracks at N results).

Reports

FFMD1 = Peter Foster, György Fazekas, Matthias Mauch, Simon Dixon
GK1 = Aggelos Gkiokas, Vassilis Katsouros, George Carayannis
GKC2 = Aggelos Gkiokas, Vassilis Katsouros, George Carayannis
GKC3 = Aggelos Gkiokas, Vassilis Katsouros, George Carayannis
PS1 = Tim Pohle, Dominik Schnitzer
SS2 = Klaus Seyerlehner, Markus Schedl
SS4 = Klaus Seyerlehner, Markus Schedl
SS5 = Abhinava Srivastava, Mohit Sinha
