Introduction

These are the results for the 2018 running of the Multiple Fundamental Frequency Estimation and Tracking task on MIREX dataset. For background information about this task set please refer to the 2018:Multiple Fundamental Frequency Estimation & Tracking page.

General Legend

Sub code Submission name Abstract Contributors
CB1 Silvet PDF Chris Cannam, Emmanouil Benetos
CB2 Silvet Live PDF Chris Cannam, Emmanouil Benetos
KB1 (Note-subtask2 only) PianoTranscriptor PDF Rainer Kelz, Sebastian Böck]

Task 1: Multiple Fundamental Frequency Estimation (MF0E)

MF0E Overall Summary Results

Below are the average scores across 40 test files. These files come from 3 different sources: woodwind quintet recording of bassoon, clarinet, horn,flute and oboe (UIUC); Rendered MIDI using RWC database donated by IRCAM and a quartet recording of bassoon, clarinet, violin and sax donated by Dr. Bryan Pardo`s Interactive Audio Lab (IAL). 20 files coming from 5 sections of the woodwind recording where each section has 4 files ranging from 2 polyphony to 5 polyphony. 12 files from IAL, coming from 4 different songs ranging from 2 polyphony to 4 polyphony and 8 files from RWC synthesized midi ranging from 2 different songs ranging from 2 polphony to 5 polyphony.

Detailed Results

Precision Recall Accuracy Etot Esubs Emiss Efa
CB1 0.804 0.519 0.498 0.529 0.093 0.389 0.047
CB2 0.656 0.460 0.420 0.636 0.174 0.367 0.095

download these results as csv

Detailed Chroma Results

Here, accuracy is assessed on chroma results (i.e. all F0's are mapped to a single octave before evaluating)

Precision Recall Accuracy Etot Esubs Emiss Efa
CB1 0.851 0.551 0.527 0.497 0.062 0.389 0.047
CB2 0.747 0.527 0.479 0.568 0.106 0.367 0.095

download these results as csv

Individual Results Files for Task 1

CB1= Chris Cannam, Emmanouil Benetos
CB2= Chris Cannam, Emmanouil Benetos

Info about the filenames

The filenames starting with part* comes from acoustic woodwind recording, the ones starting with RWC are synthesized. The legend about the instruments are:

bs = bassoon, cl = clarinet, fl = flute, hn = horn, ob = oboe, vl = violin, cel = cello, gtr = guitar, sax = saxophone, bass = electric bass guitar

Friedman tests for Multiple Fundamental Frequency Estimation (MF0E)

The Friedman test was run in MATLAB to test significant differences amongst systems with regard to the performance (accuracy) on individual files.

Tukey-Kramer HSD Multi-Comparison

TeamID TeamID Lowerbound Mean Upperbound Significance
CB1 CB2 0.4901 0.8000 1.1099 TRUE

download these results as csv

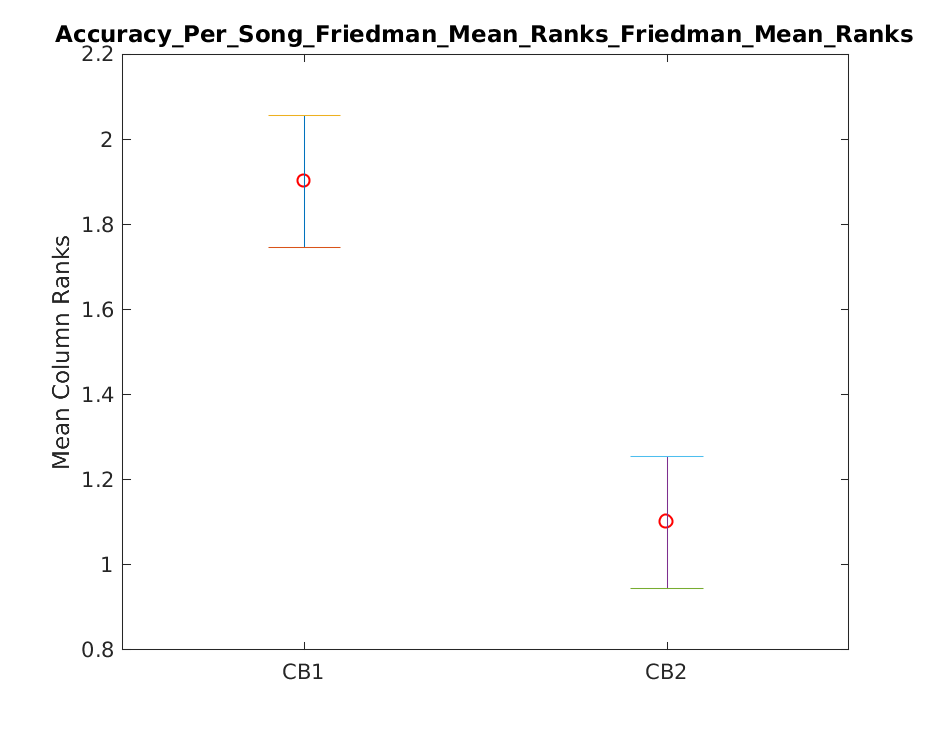

2018 Accuracy Per Song Friedman Mean Rankstask1.friedman.Friedman Mean Ranks.png

Task 2:Note Tracking (NT)

NT Mixed Set Overall Summary Results

This subtask is evaluated in two different ways. In the first setup , a returned note is assumed correct if its onset is within +-50ms of a ref note and its F0 is within +- quarter tone of the corresponding reference note, ignoring the returned offset values. In the second setup, on top of the above requirements, a correct returned note is required to have an offset value within 20% of the ref notes duration around the ref note`s offset, or within 50ms whichever is larger.

A total of 34 files were used in this subtask: 16 from woodwind recording, 8 from IAL quintet recording and 6 piano.

CB1 CB2
Ave. F-Measure Onset-Offset 0.3047 0.2064
Ave. F-Measure Onset Only 0.5029 0.3742
Ave. F-Measure Chroma 0.3207 0.2365
Ave. F-Measure Onset Only Chroma 0.5343 0.4276

download these results as csv

Detailed Results

Precision Recall Ave. F-measure Ave. Overlap
CB1 0.312 0.304 0.305 0.865
CB2 0.201 0.230 0.206 0.862

download these results as csv

Detailed Chroma Results

Here, accuracy is assessed on chroma results (i.e. all F0's are mapped to a single octave before evaluating)

Precision Recall Ave. F-measure Ave. Overlap
CB1 0.329 0.320 0.321 0.860
CB2 0.229 0.265 0.237 0.858

download these results as csv


Results Based on Onset Only

Precision Recall Ave. F-measure Ave. Overlap
CB1 0.525 0.493 0.503 0.720
CB2 0.375 0.403 0.374 0.677

download these results as csv

Chroma Results Based on Onset Only

Precision Recall Ave. F-measure Ave. Overlap
CB1 0.558 0.524 0.534 0.700
CB2 0.426 0.465 0.428 0.652

download these results as csv


Friedman Tests for Note Tracking

The Friedman test was run in MATLAB to test significant differences amongst systems with regard to the F-measure on individual files.

Tukey-Kramer HSD Multi-Comparison for Task2
TeamID TeamID Lowerbound Mean Upperbound Significance
CB1 CB2 0.6050 0.9412 1.2773 TRUE

download these results as csv

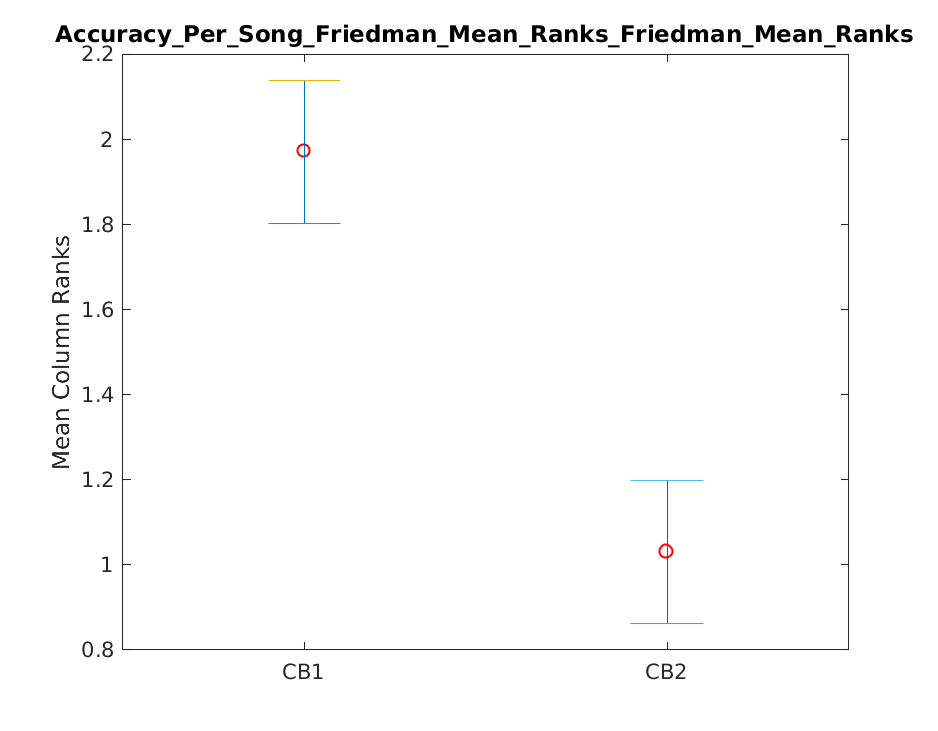

2018 Accuracy Per Song Friedman Mean Rankstask2.onsetOnly.friedman.Friedman Mean Ranks.png

NT Piano-Only Overall Summary Results

This subtask is evaluated in two different ways. In the first setup , a returned note is assumed correct if its onset is within +-50ms of a ref note and its F0 is within +- quarter tone of the corresponding reference note, ignoring the returned offset values. In the second setup, on top of the above requirements, a correct returned note is required to have an offset value within 20% of the ref notes duration around the ref note`s offset, or within 50ms whichever is larger. 6 piano recordings are evaluated separately for this subtask.

CB1 CB2 KB1
Ave. F-Measure Onset-Offset 0.2216 0.2085 0.5205
Ave. F-Measure Onset Only 0.7002 0.5642 0.6869
Ave. F-Measure Chroma 0.2343 0.2247 0.5245
Ave. F-Measure Onset Only Chroma 0.7103 0.5787 0.6875

download these results as csv


Detailed Results

Precision Recall Ave. F-measure Ave. Overlap
CB1 0.245 0.203 0.222 0.812
CB2 0.228 0.195 0.209 0.797
KB1 0.573 0.479 0.520 0.827

download these results as csv

Detailed Chroma Results

Here, accuracy is assessed on chroma results (i.e. all F0's are mapped to a single octave before evaluating)

Precision Recall Ave. F-measure Ave. Overlap
CB1 0.259 0.216 0.234 0.811
CB2 0.245 0.210 0.225 0.792
KB1 0.578 0.482 0.524 0.827

download these results as csv


Results Based on Onset Only

Precision Recall Ave. F-measure Ave. Overlap
CB1 0.746 0.666 0.700 0.572
CB2 0.596 0.543 0.564 0.589
KB1 0.753 0.636 0.687 0.745

download these results as csv


Chroma Results Based on Onset Only

Precision Recall Ave. F-measure Ave. Overlap
CB1 0.757 0.676 0.710 0.569
CB2 0.611 0.557 0.579 0.586
KB1 0.753 0.636 0.688 0.741

download these results as csv

Individual Results Files for Task 2

CB1= Chris Cannam, Emmanouil Benetos
CB2= Chris Cannam, Emmanouil Benetos
KB1= Rainer Kelz, Sebastian Böck
